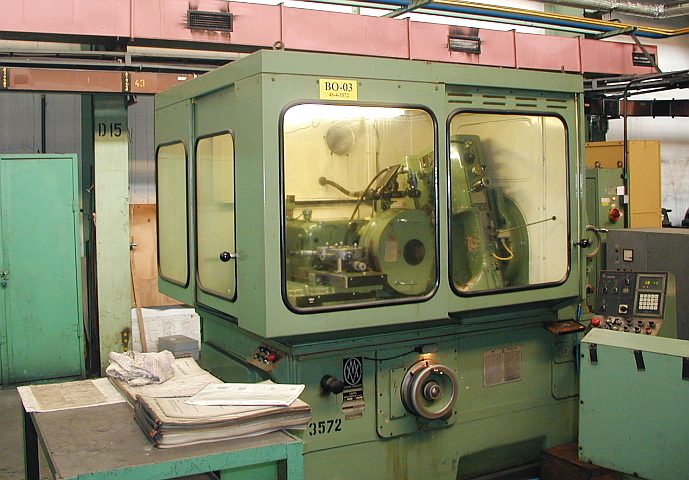

Gear grinder -CSEPEL
| Code | 6.3 |
|---|---|
| Name | Gear grinder -CSEPEL |
| Producer | Csepel Hungary |
| Type | FKP 326-10 |
| Year prod. |
Max diameter of workpiece (gear): 320 mm
maximum width of the workpiece (gear): 150 mm
max module: 6
min. Module: 0.5,
number of teeth: 10-260,
range helix: + / - 45 °
workpiece weight: 80 kg
workpiece length: 420 mm
Tailstock travel: 170 mm
tangential displacement: 95 mm
Grinding wheel dimensions: 450 x 104 x 203 mm
grinding spindle speed 1500 rpm-1
Total power: 26 kW,
dimensions of the machine ca. 3100 x 2300 x 2400 mm
