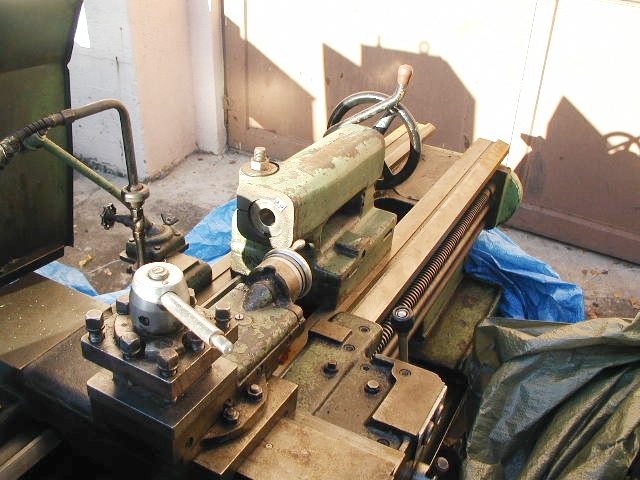

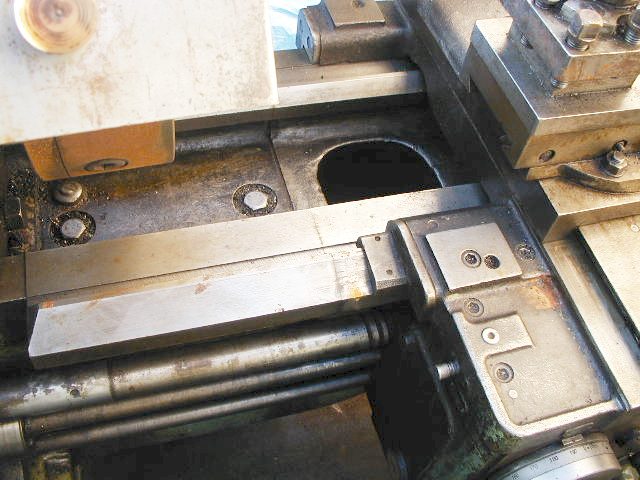

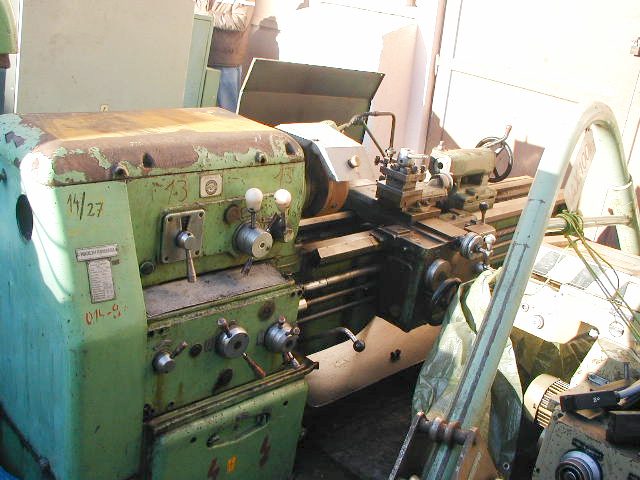

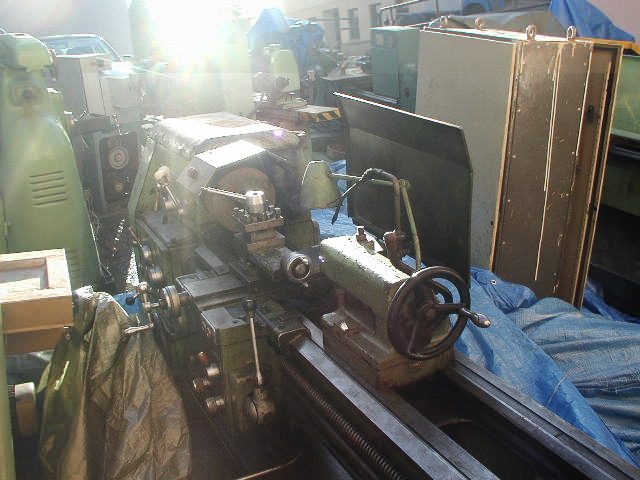

Centre lathe
| Code | 5.22 |
|---|---|
| Name | Centre lathe |
| Producer | ARAD Romania |
| Type | SN 400/1500 |
| Year prod. |
Swing over bed: 400 mm
Swing bridge over removed: 580 mm
Swing over cross slide: 210 mm
Distance between centers: 1500 mm
spindle bore 48 mm
Morse taper tailstock quill 4
Spindle - 22 degrees
the range: 12 -1500 r.p.m
Shifts - 60 degrees
-longitudinal: 0,046 - 3,52 mm.p.r.
-cross: 0,015 - 1,17 mm.p.r
threads:
-54 Metric pitch
-48 Whitworth threads
-12 Module:
-42 Diametral Pitch
Electric motor to drive the spindle: 1,1/7,5 kW
Machine dimensions: length x width: 3250 x 1050 mm
Machine weight: 2150 kg
