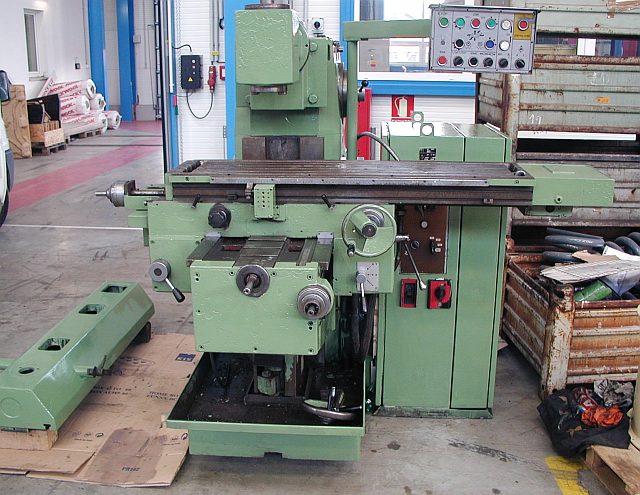

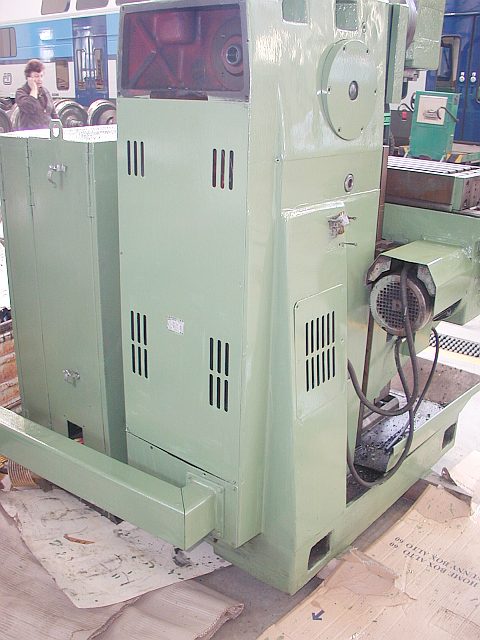

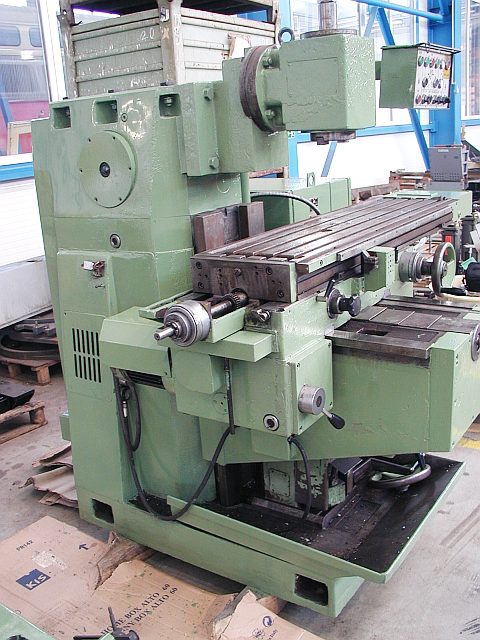

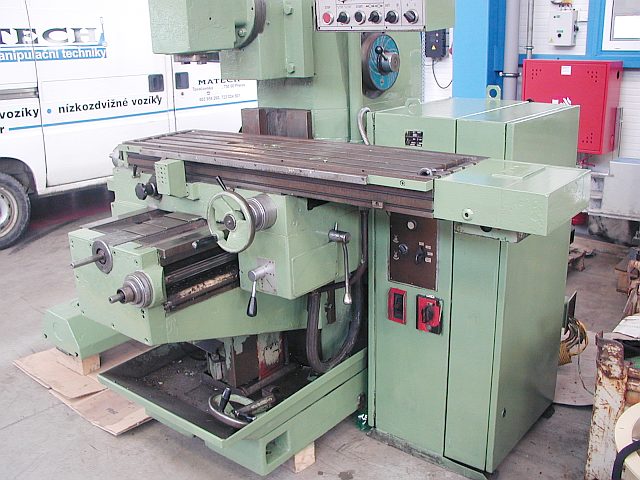

Knee-type milling machine TOS
| Code | 2.4 |
|---|---|
| Name | Knee-type milling machine TOS |
| Producer | TOS |

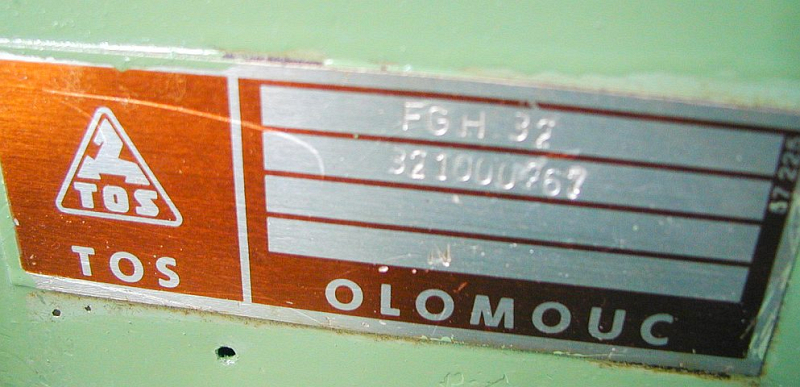

| Type | FGH 32 |
| Year prod. |
Table dimensions: 320 x 1250 mm
Clamping slots - 4:
- width x pitch: 18 x 63 mm
Longitudinal movement of table: 850 mm
Cross movement of table: 376 mm
Vertical movement of knee: 420 mm
Taper in spindle: ISO 50
Spindle revolutions- 12 degrees:
- range: 31,5-1400 rpm
Traverses - 13 degress
- longitudinal and cross: 14-900 mm/min.
- vertical: 4-250 mm/min.
Machine dimensions - length x width: 3 410 x 2 400 mm
with vertical milling head
