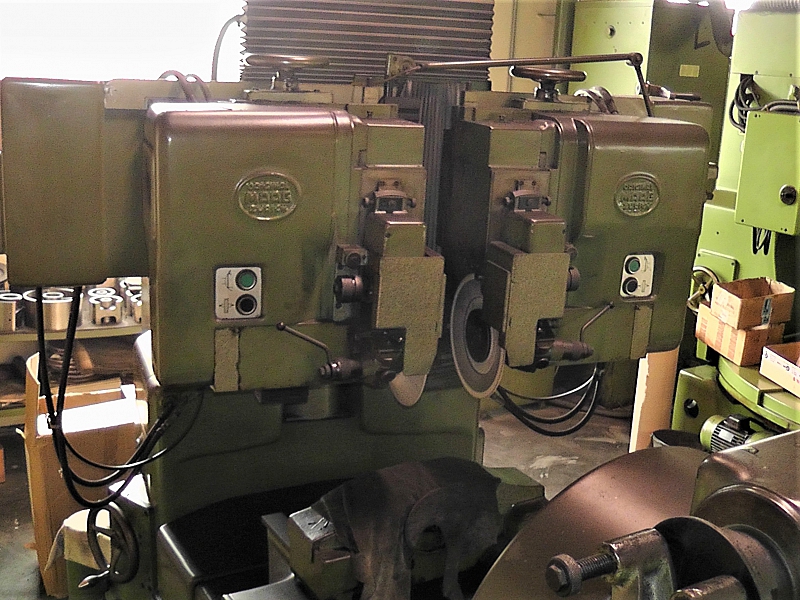

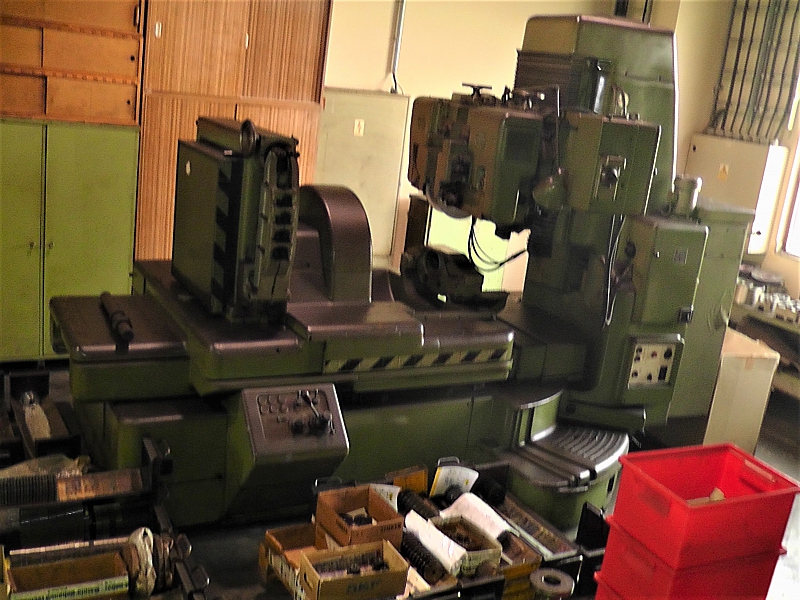

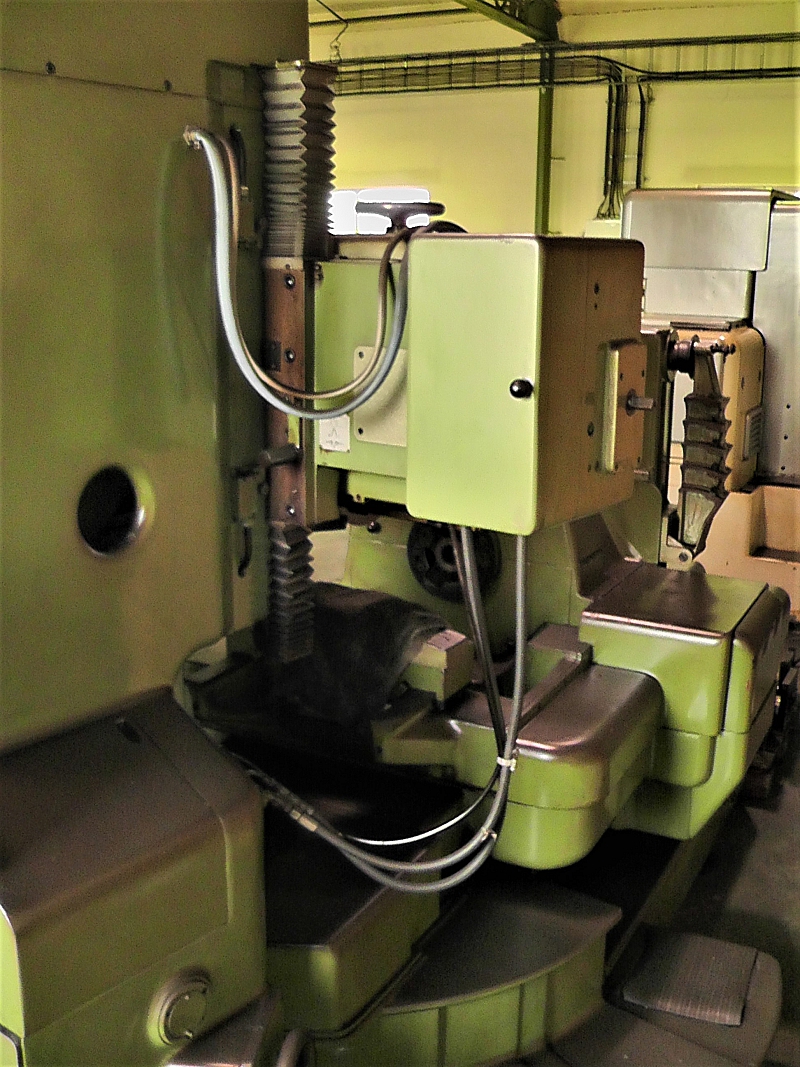

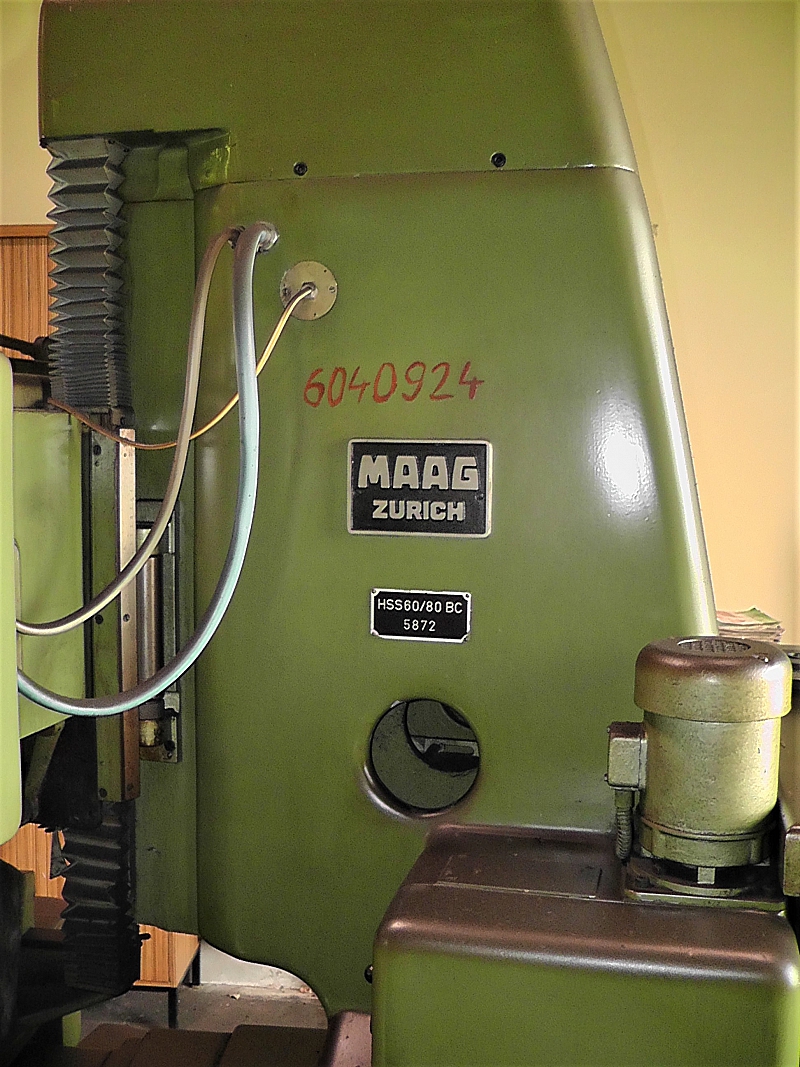

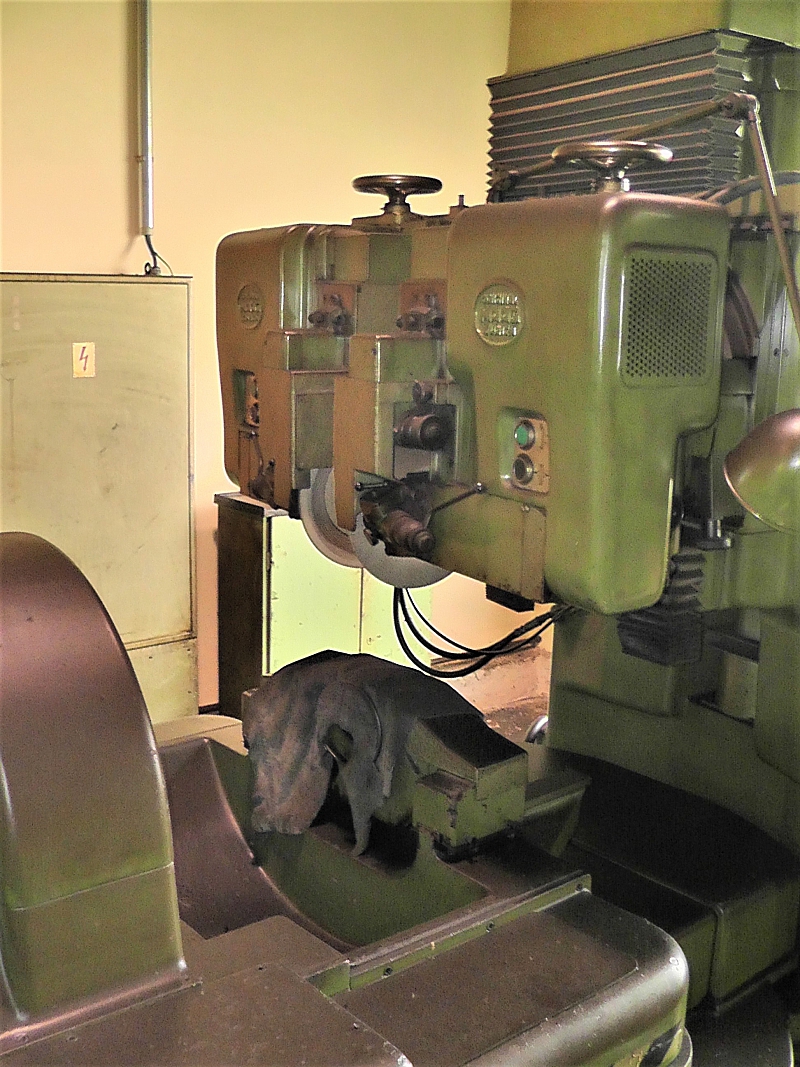

Gear grinding machine
| Code | 6.2109 |
|---|---|
| Name | Gear grinding machine |
| Producer | MAAG |
| Type | HSS 60/80 BC |
| Year prod. |
Max. wheel diameter
-in the rear: 820 mm
-between centers: 440 mm
Min. pitch diameter: 90 mm
Max. tooth width: 300 mm
Module: 2 - 12
Number of teeth: 15 - 200
Max. angle of teeth: 45 st.
Max. workpiece weight between spikes: 25 kg
Max. workpiece weight in the rear: 250 kg
Max. grinding wheel diameter: 280 mm
Diameter of the disk: 340 mm
Total machine input: 4 kW
Machine weight: 6800 kg
